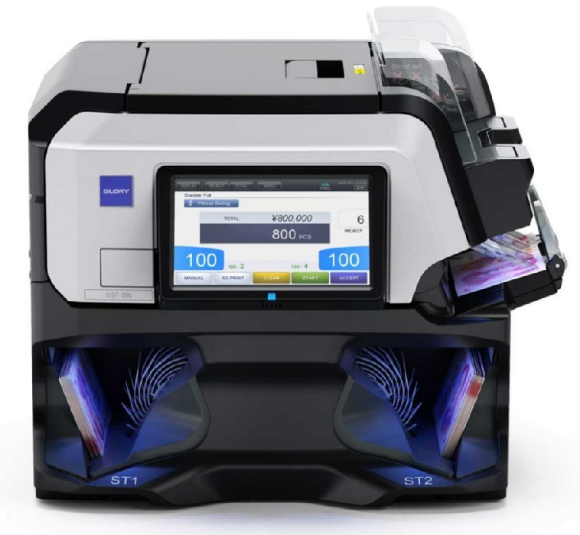

USF-200 Banknote sorter

Ergonomically designed
The USF-200 has been carefully designed to ensure optimal operational ergonomics for the user, with
the banknote hopper within easy reach. Considering most users will operate the machine in a sitting
position, the device’s horizontal stacker arrangement ensures that all user touch points are placed in a
safe and comfortable working position. In addition to this, combined with a significant weight reduction
from its predecessor, the USF-200 offers greater processing capabilities, but in a smaller and lighter
device.
Intuitive user interface
The USF-200 features a large graphical user interface for displaying key processing data, user
messages and also for operational guidance. The 7" full colour display offers substantially improved
visibility of user information. All processing data, such as denominations counted and stacker
information, is visible on one screen, making the USF-200 highly intuitive to use.
Horizontal note path
USF-200 boasts a multitude of innovative design features, including horizontal note path and stackers,
which is a similar arrangement to that used in Glory’s larger cash centre solutions. A ‘note pusher’
presents the notes out of the stacker, with an LED light illuminating when the banknotes are ready for
the user to remove from the stacker. This helps to improve efficiency, as notes are presented in a tidy
bundle.
Large hopper capacity
The USF-200 holds up to 500 banknotes in its hopper and reliably feeds one note at a time to prevent
jamming, high rejects or double feeds. The open-style hopper provides clear visibility of the banknote
feeding process so more banknotes can be added in continuous large-volume deposits.

Compact footprint
Compared to its predecessors, the USF-200 is 35% smaller in terms of overall footprint. This downsized
device can easily fit into a teller’s workspace, ensuring they can still perform the banknote sorting
operations required, but can keep the space dedicated to machines and equipment to a minimum.
In addition, the USF-200’s innovative design means that no additional workspace is taken up for
maintenance access – the device can be placed against a wall, leaving sufficient space in front of the
machine; all user maintenance is performed by lifting the upper section.
Easy user maintenance
The USF-200 features a fully opening upper section that allows simple routine maintenance to be
performed by the operator. In the event of a banknote or foreign object jam in the counting or transport
section, the wide-opening upper section makes it easy to find and remove the jammed object. In addition,
this innovative design ensures no additional workspace is utilised, other than the footprint of the device, for
service maintenance. A dust tray is also provided for easy removal of accumulated dust.
Low noise emissions
The USF-200's operating noise is significantly reduced when compared to its predecessors. Perceived
noise emissions are 50% lower due to a change in frequency range and through advance mechanical
design. Its low noise emissions make it ideally suited to the branch environment.
CASHINSIGHT™

Banknote processing speed
(notes per minute)
Count mode: 1,000
Sort mode: 1,000
Fit/unfit mode: 1,000
Serial number recognition (KIBANGO™): 1,000
Hopper capacity 500 notes
Stacker capacity 200 notes × 2
Reject stacker capacity 100 notes
Power supply 100 – 240V ±10%, 1.5 – 0.8 A, 50/60 Hz
Dimensions (W × D × H) 400 mm × 360 mm × 360 mm
Weight 27 kg
External connection (option) LAN, USB, SD card, RS-232C
